Automatic horizontal granule packing machine
|Unit Price:||USD 25000 / Set/Sets |
|Payment Type:||L/C,T/T,Western Union|
|Terms of Trade:||FOB,CFR,CIF|
|Min. Order:||1 Set/Sets|
|Delivery Time:||45 Days|
|Packaging:||Standard export wooden case|
|Place of Origin:||China|
Model No.: HS-90
Type: Pharmaceutical Packaging Machinery
Finished Dosage Form: Granules
Precision: High Precision
Certification: CE, GMP
Warranty: 1 Year
This mini machine is the only one in Ingram Micro's present product lines which can fill&seal without vacuum pouch opening devices. It adopts fil l- seal - cut process and is able to produce sachet strings besides single and twins sachets. It is suitable for the high speed packaging of small volumes of sugars coffees,sauces,shampoos etc.
It is applicable for such sectors including foodstuff, pesticide, pharmaceuticals, daily chemicals etc. The machine can choose from different filling methods according to nature of material including liquid, powder, particle, paste etc.
1. Mainframe Frequency Conversion System: Imported AC motor and frequency conversion, stable and reliable operation; low speed and large torque ensure excellent performance even under sharp fluctuations of load.
2. Servo Blanking System: Panasonic servo motor controls rotation of blanking bolt directly by pulse number; stable and reliable performance,convenience of regulation.
3. Package Making System: The package making and sealing and filling systems are independent to each other in this system. The two systems are linked and coordinated by mechanical coupling and programmable logic controller (PLC). Therefore, the system is suitable for a variety of products and sizes of package.
4. Finished Product Sealing System: Fully automatic production facility that finishes package
making, metering, filling, sealing and other packaging processes by heat-sealing packaging material (polyethylene membrane, multilayer composite membrane etc.). The package shall be three-side or four-side sealed flat package. Fillers of different types may package a variety of products.
5. Integrated Control System: It is composed of PLC, frequency converter etc., featuring a high level of integration, strong control capabilities and high reliability of operation. Touch screen technology eases and facilities operation. The optoelectric transducer,encoder, proximity switch etc. are all equipped with imported and advanced sensing elements, so the mechanical and electrical integration of the entire frame is embodied perfectly.
1. Material contact parts 316 stainless steel
2. A film reel auto-alignment shaft
4. Two sets of horizontal sealing unit
5. One set of vertical sealing unit
6. Initiative film shaft
7. An independent bag former
8. A 3-side and 4-side sealing device
9. A pair of scissors
10. An tearing notch cutter
11. An automatic material-level control system
12. A PLC tracking control system
13. A LCD touch-control operation system
14. An 10-digit press printer
15. A product outlet system
16. An operation manual in English

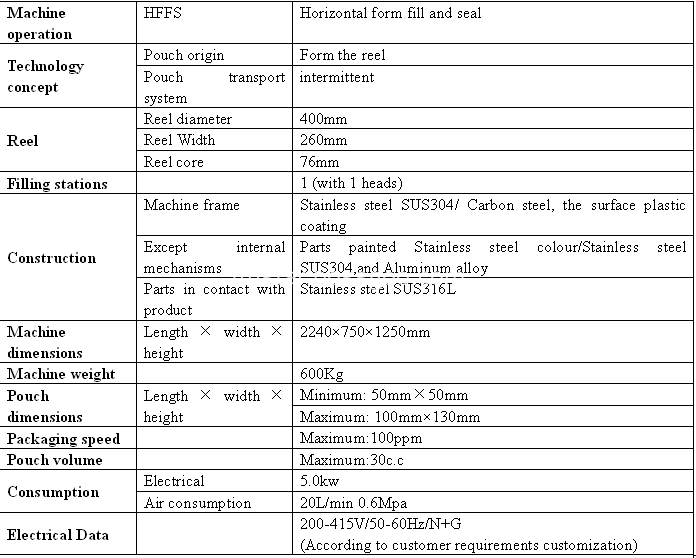

Main technical parameters
1. Our company
Trustar Pharma & Packing Equipment Co.,Ltd Culture
Work style: solid credibility, authority and reliable;
Enterprises purpose:integrity services to customers, a service win customers;
Teamwork:win-win team the importance of care and mutual benefit, work with
Market concept:the interests of users is always what Trustar pursuit;
Dealers coexistence with the principles:mutual benefit and common development
3. Packing and transportation
- Company Name: Trustar Pharma & Packing Equipment Co.,Ltd.
- Representative: Fu Mujiang
- Product/Service: Pharmaceutical Machineries , Medicine Packing Machineries , Food Packaging Machineries , Filling & Sealing Machines , Capsule Filling Machines , Cartoner
- Capital (Million US $): 500,000RMB
- Year Established: 2006
- Total Annual Sales Volume (Million US $): US$5 Million - US$10 Million
- Export Percentage: 51% - 60%
- Total Annual Purchase Volume (Million US $): US$2.5 Million - US$5 Million
- No. of Production Lines: 5
- No. of R&D Staff: 5 -10 People
- No. of QC Staff: 5 -10 People
- OEM Services Provided: yes
- Factory Size (Sq.meters): 3,000-5,000 square meters
- Factory Location: Ruian Economic Development Zone, Zhejiang, China
- Contact Person: Mr. Xiang
- Tel: 86-577-65905237
